New Tiger Positraction Limited Slip Unit

[Maliburevue]

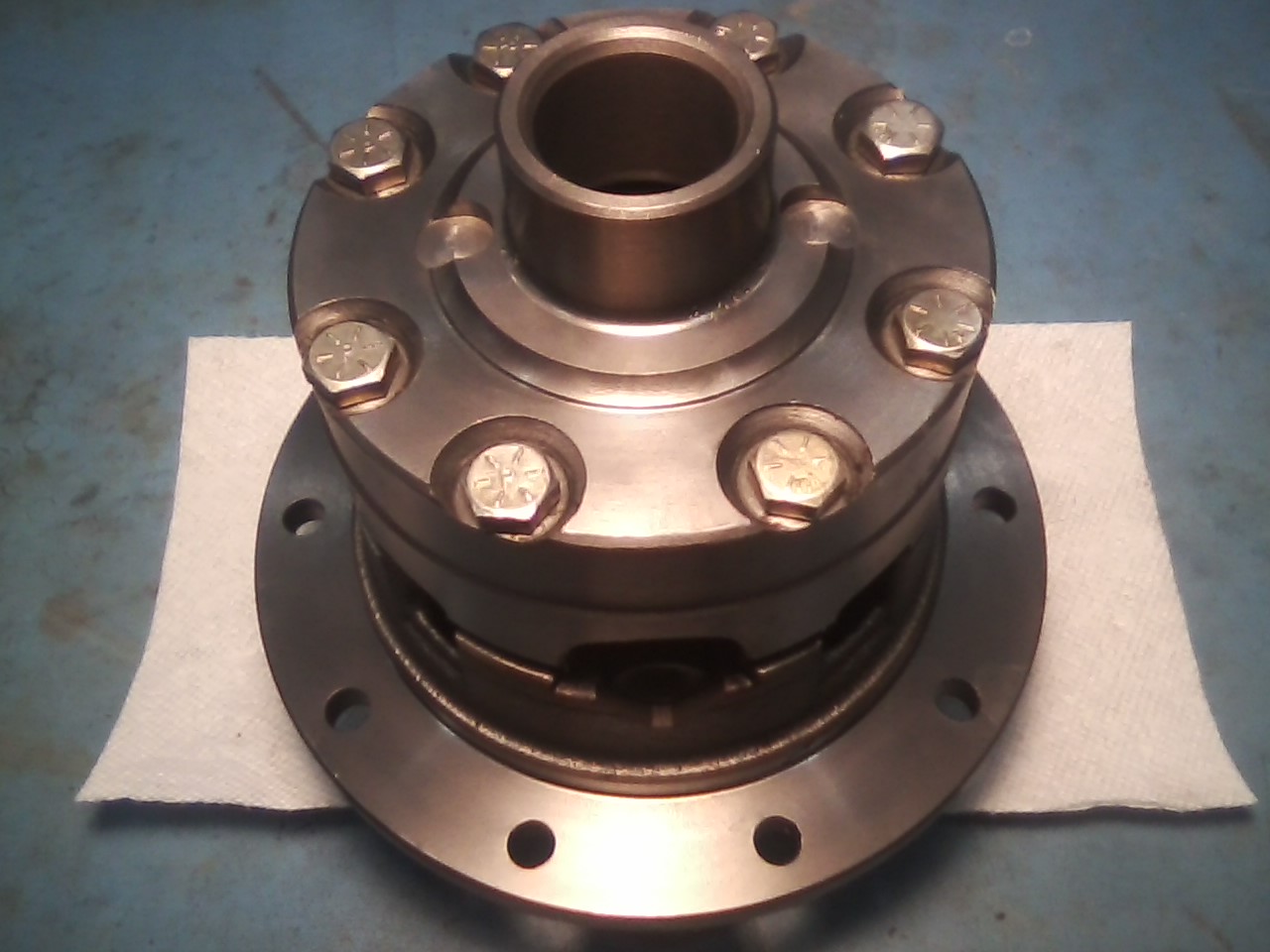

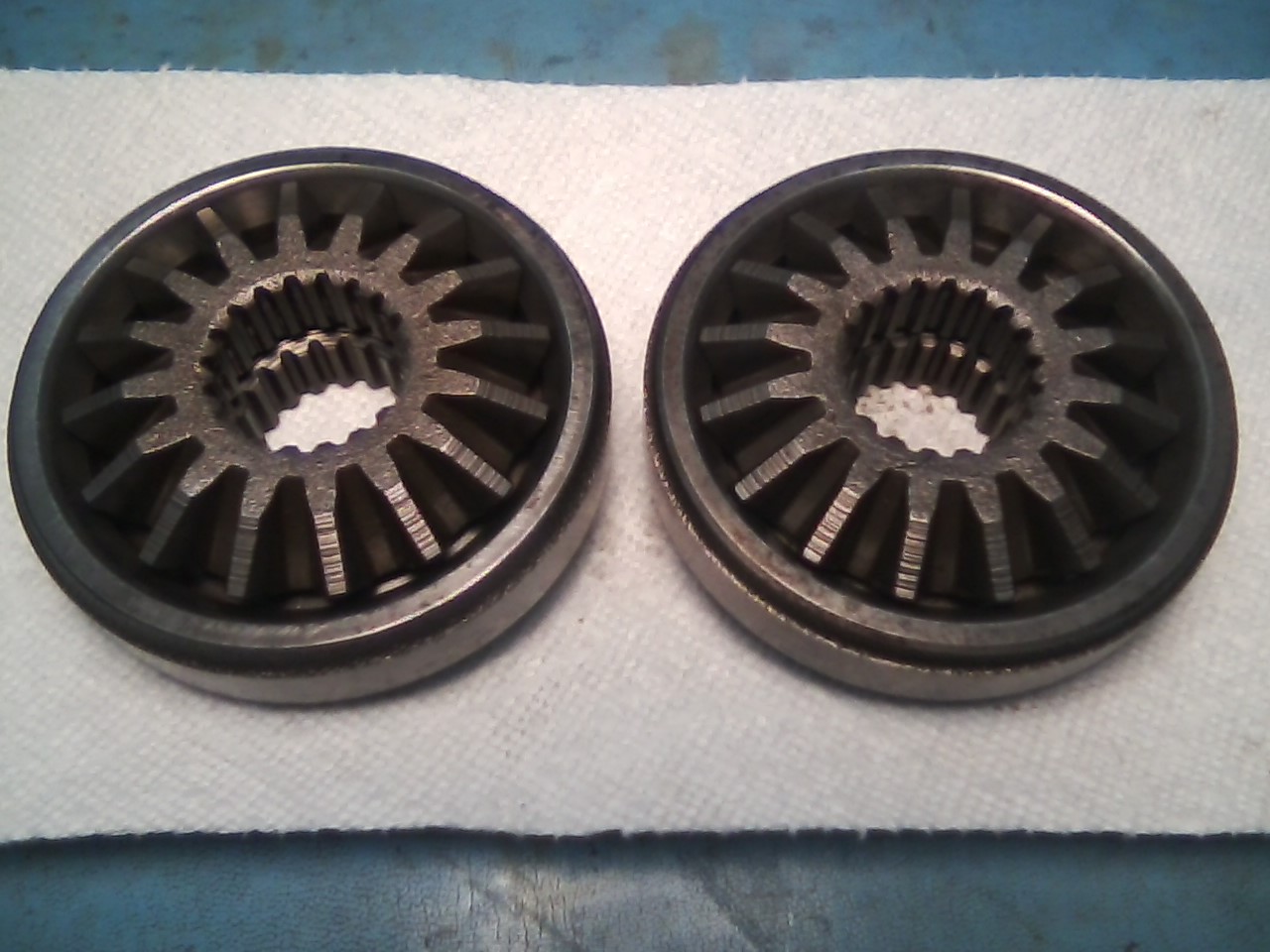

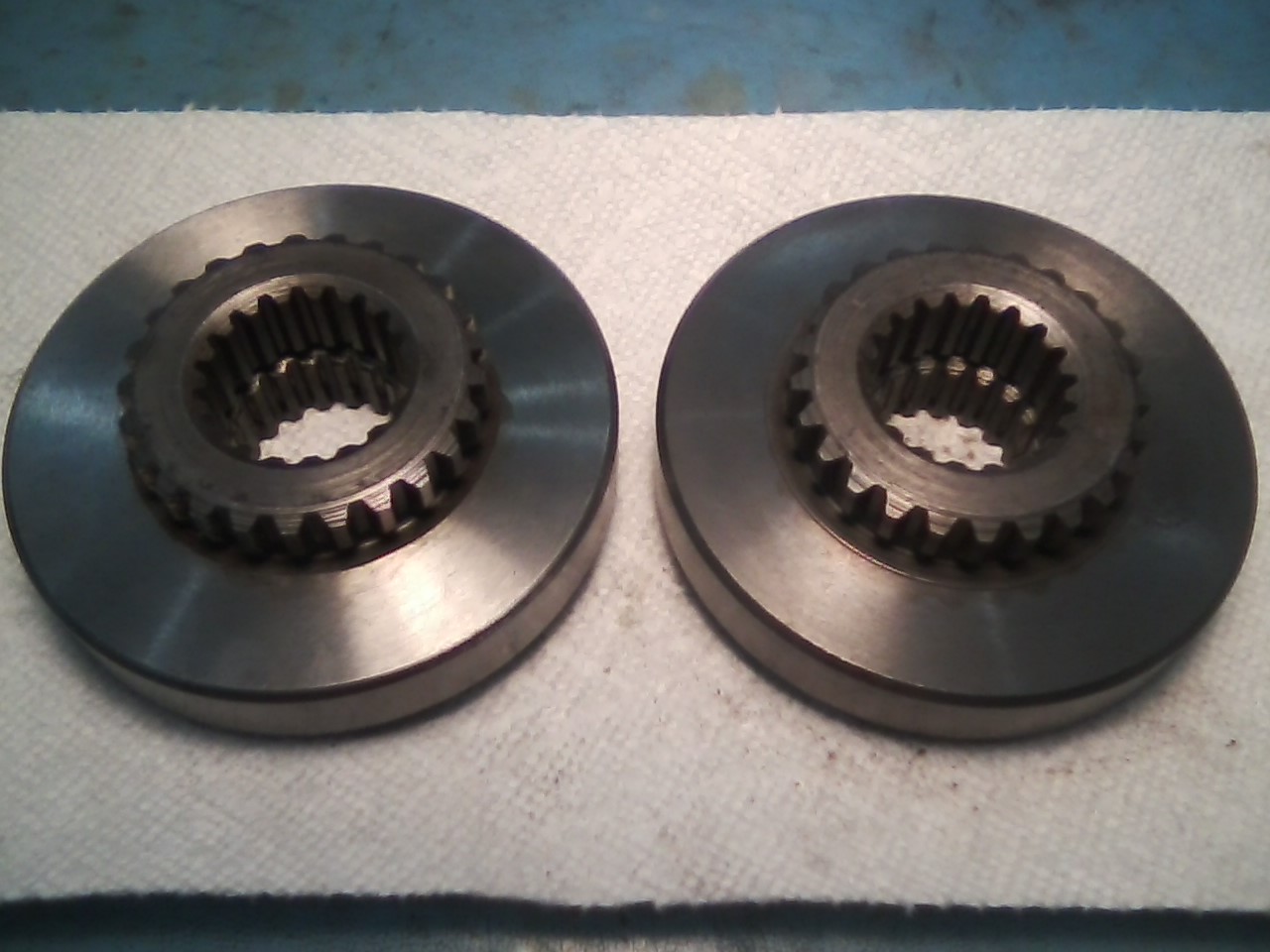

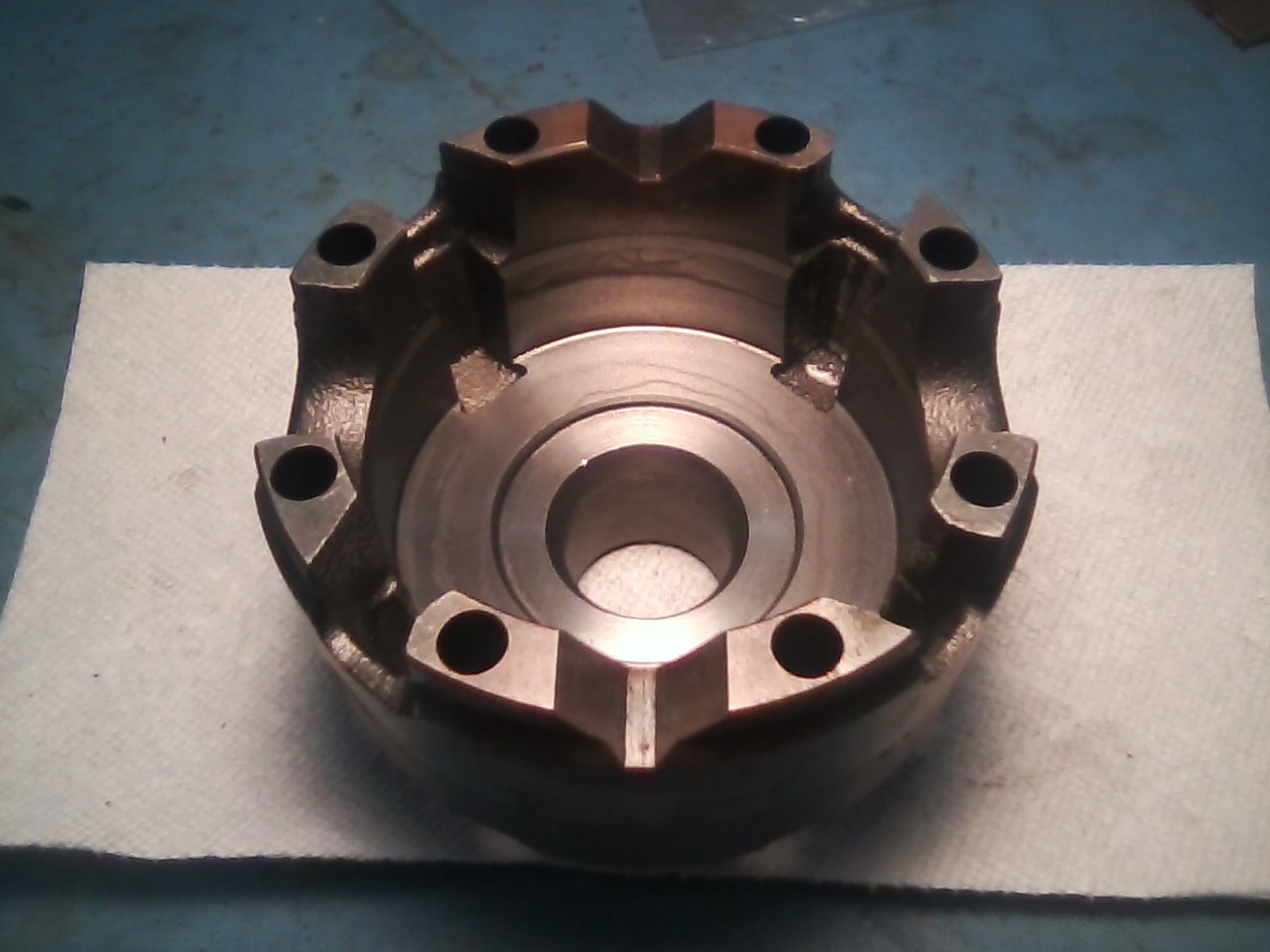

Brand new Dana 44 positraction unit for all Sunbeam Tigers. This unit accommodates 2.72, 2.88, 3.07, 3.23, 3.31, 3.54 and 3.73 gear ratios. It was purchased with 30 spline side gears and clutch hubs, but converted to 19 spline using NOS parts. NOS 19 spline side gears and clutch hubs are near impossible to find. I have been saving them for years.

Please note, there are 2 bolt sizes for Tiger ring gears, 3/8" and 7/16". Tigers came from the factory with 2.88 gears and 7/16" ring gear bolts. If your gears have been changed at some point, you may have a differential with 3/8" ring gear bolts. I will set up this unit for either 3/8" or 7/16" ring gear bolts. I suggest removing your rearend cover and removing one of your ring gear bolts to confirm which size you have.

The posi will be lubed with limited-slip oil, torqued and ready to install.

$500 plus shipping. I accept US Postal money orders, cash and personal checks after they clear the bank (not that I don't trust you guys). I ship either US Postal Service Parcel Post or FEDEX, whichever is cheapest. I don't charge for packaging or handling. You only pay actual shipping cost and I reimburse if shipping is less. The package weighs about 26 lbs.

This new unit would be perfect for that concours restoration.

Email or PM me with your email and/or phone number

Thanks,

Gary



[Kdo]

Brand new Dana 44 positraction unit for all Sunbeam Tigers. This unit accommodates 2.72, 2.88, 3.07, 3.23, 3.31, 3.54 and 3.73 gear ratios. It was purchased with 30 spline side gears and clutch hubs, but converted to 19 spline using NOS parts. NOS 19 spline side gears and clutch hubs are near impossible to find. I have been saving them for years.

Please note, there are 2 bolt sizes for Tiger ring gears, 3/8" and 7/16". Tigers came from the factory with 2.88 gears and 7/16" ring gear bolts. If your gears have been changed at some point, you may have a differential with 3/8" ring gear bolts. I will set up this unit for either 3/8" or 7/16" ring gear bolts. I suggest removing your rearend cover and removing one of your ring gear bolts to confirm which size you have.

The posi will be lubed with limited-slip oil, torqued and ready to install.

$500 plus shipping. I accept US Postal money orders, cash and personal checks after they clear the bank (not that I don't trust you guys). I ship either US Postal Service Parcel Post or FEDEX, whichever is cheapest. I don't charge for packaging or handling. You only pay actual shipping cost and I reimburse if shipping is less. The package weighs about 26 lbs.

This new unit would be perfect for that concours restoration.

Email or PM me with your email and/or phone

Brand new Dana 44 positraction unit for all Sunbeam Tigers. This unit accommodates 2.72, 2.88, 3.07, 3.23, 3.31, 3.54 and 3.73 gear ratios. It was purchased with 30 spline side gears and clutch hubs, but converted to 19 spline using NOS parts. NOS 19 spline side gears and clutch hubs are near impossible to find. I have been saving them for years.

Please note, there are 2 bolt sizes for Tiger ring gears, 3/8" and 7/16". Tigers came from the factory with 2.88 gears and 7/16" ring gear bolts. If your gears have been changed at some point, you may have a differential with 3/8" ring gear bolts. I will set up this unit for either 3/8" or 7/16" ring gear bolts. I suggest removing your rearend cover and removing one of your ring gear bolts to confirm which size you have.

The posi will be lubed with limited-slip oil, torqued and ready to install.

$500 plus shipping. I accept US Postal money orders, cash and personal checks after they clear the bank (not that I don't trust you guys). I ship either US Postal Service Parcel Post or FEDEX, whichever is cheapest. I don't charge for packaging or handling. You only pay actual shipping cost and I reimburse if shipping is less. The package weighs about 26 lbs.

This new unit would be perfect for that concours restoration.

Email or PM me with your email and/or phone number

Thanks,

Gary

Hi Gary , please call me back about the rear end



[steven]

Brand new Dana 44 positraction unit for all Sunbeam Tigers. This unit accommodates 2.72, 2.88, 3.07, 3.23, 3.31, 3.54 and 3.73 gear ratios. It was purchased with 30 spline side gears and clutch hubs, but converted to 19 spline using NOS parts. NOS 19 spline side gears and clutch hubs are near impossible to find. I have been saving them for years.

Please note, there are 2 bolt sizes for Tiger ring gears, 3/8" and 7/16". Tigers came from the factory with 2.88 gears and 7/16" ring gear bolts. If your gears have been changed at some point, you may have a differential with 3/8" ring gear bolts. I will set up this unit for either 3/8" or 7/16" ring gear bolts. I suggest removing your rearend cover and removing one of your ring gear bolts to confirm which size you have.

The posi will be lubed with limited-slip oil, torqued and ready to install.

$500 plus shipping. I accept US Postal money orders, cash and personal checks after they clear the bank (not that I don't trust you guys). I ship either US Postal Service Parcel Post or FEDEX, whichever is cheapest. I don't charge for packaging or handling. You only pay actual shipping cost and I reimburse if shipping is less. The package weighs about 26 lbs.

This new unit would be perfect for that concours restoration.

Email or PM me with your email and/or phone number

Thanks,

Gary

Magic my Tiger and myself love this unit together with the posidrive and Dan Walters torque arm transforms the car
