SS body molding locations

[CaMtnCat]

Does anyone have the location for the holes that the S/S clips insert into to hold the trim pieces in place? It seems I’ve seen those locations documented someplace.

Thanks,
Hap



[michael-king]

I think the PDF with the side trim measurements is on teae or tigersunited site.



[HolyCat]

Hap,

The location of the side trim holes are shown on page O-25 through O-30 of your CAT Shop Notes, 6th Edition. The articles include location of the Tiger scripts as well as the badges.

Thanks!
David



[hottigr]

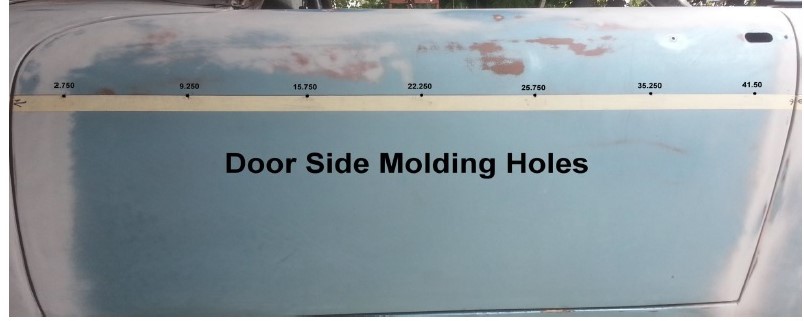

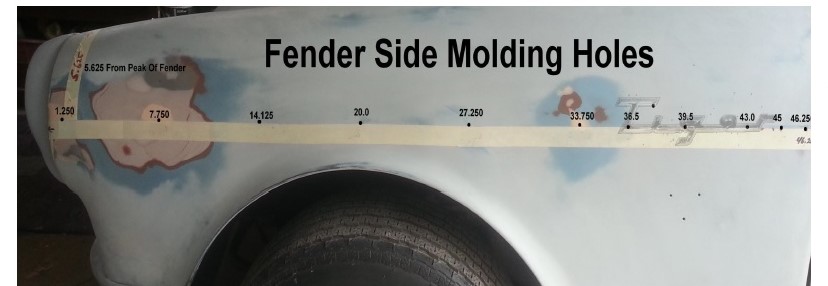

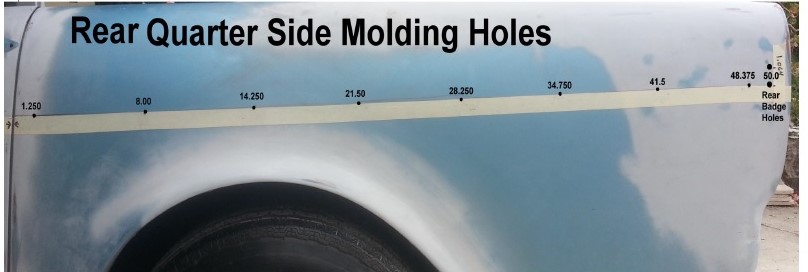

I believe this is what you are looking for:

Kirk
